UBL invoice

Modified on Thu, 29 Feb 2024 at 03:10 PM

The UBL invoice like Yuki can read-out and process or can produce as an attachment with the sales invoice complies with the standard that is internationally agreed upon. Despite the international agreements there are quite a few 'dialects'. When there are some leads within the data that is submitted then yuki will process it correctly. When data is missing like for example a VAT number then it will be more difficult to process the data correctly.


Yuki can automatically split an invoice submitted in UBL format into a number of invoice lines during processing using UBL rules (processing rules).


Below the invoice as it is made up of sections is described. General documentation on UBL 2.0 can also be used for further reference. The documentation describes what the labels should be and how the content should be composed. A label is for example <cbc:IssueDate> and the content is then 2018-06-23 so a four-digit year then the month followed by the day.

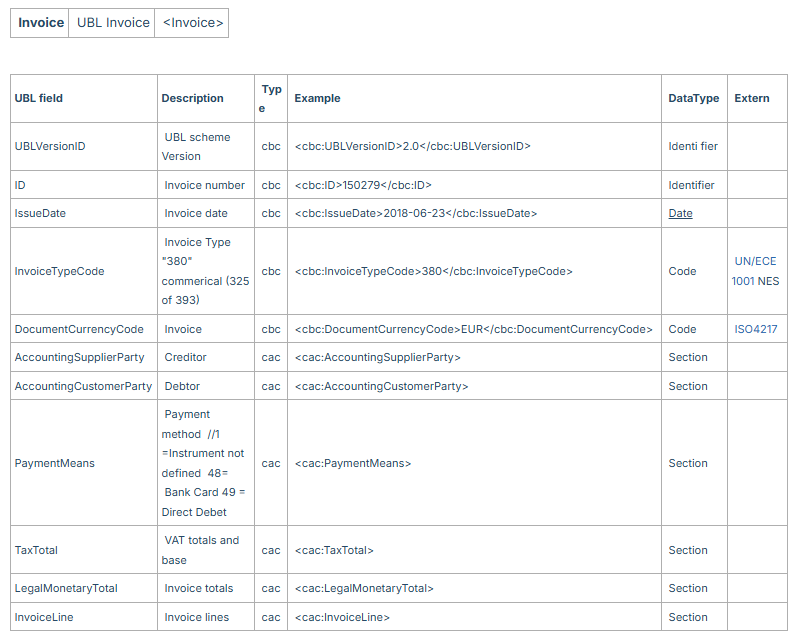

 Invoice
 UBL Invoice
 <Invoice>



UBL field
Description
 Typ
 Example
 DataType
 Extern
UBLVersionID
 UBL scheme Version
 cbc
 <cbc:UBLVersionID>2.0</cbc:UBLVersionID>
 Identi fier

ID
 Invoice number
 cbc
 <cbc:ID>150279</cbc:ID>
 Identifier

IssueDate
 Invoice date
 cbc
 <cbc:IssueDate>2018-06-23</cbc:IssueDate>
 Date

InvoiceTypeCode
 Invoice Type "380" commerical (325 of 393)
 cbc
 <cbc:InvoiceTypeCode>380</cbc:InvoiceTypeCode>
 Code
 UN/ECE 1001 NES
DocumentCurrencyCode
 Invoice
 cbc
 <cbc:DocumentCurrencyCode>EUR</cbc:DocumentCurrencyCode>
 Code
 ISO4217
AccountingSupplierParty
 Creditor
 cac
 <cac:AccountingSupplierParty>
 Section

AccountingCustomerParty
 Debtor
 cac
 <cac:AccountingCustomerParty>
 Section

PaymentMeans
 Payment method  //1 =Instrument not defined  48=  Bank Card 49 = Direct Debet
 cac
 <cac:PaymentMeans>
 Section

TaxTotal
 VAT totals and base
 cac
 <cac:TaxTotal>
 Section

LegalMonetaryTotal
 Invoice totals
 cac
 <cac:LegalMonetaryTotal>
 Section

InvoiceLine
 Invoice lines
 cac
 <cac:InvoiceLine>
 Section










For more detailed information, see http://www.datypic.com/sc/ubl20/e-ns19_Invoice.html


UBL invoice elements


UBL invoice
